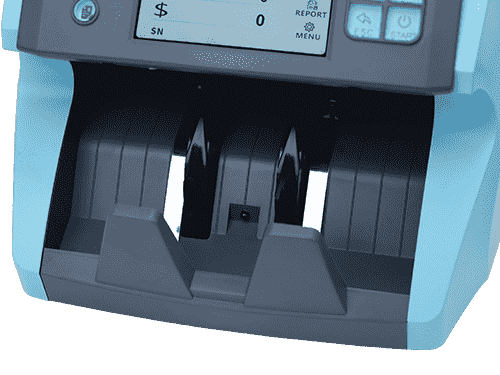

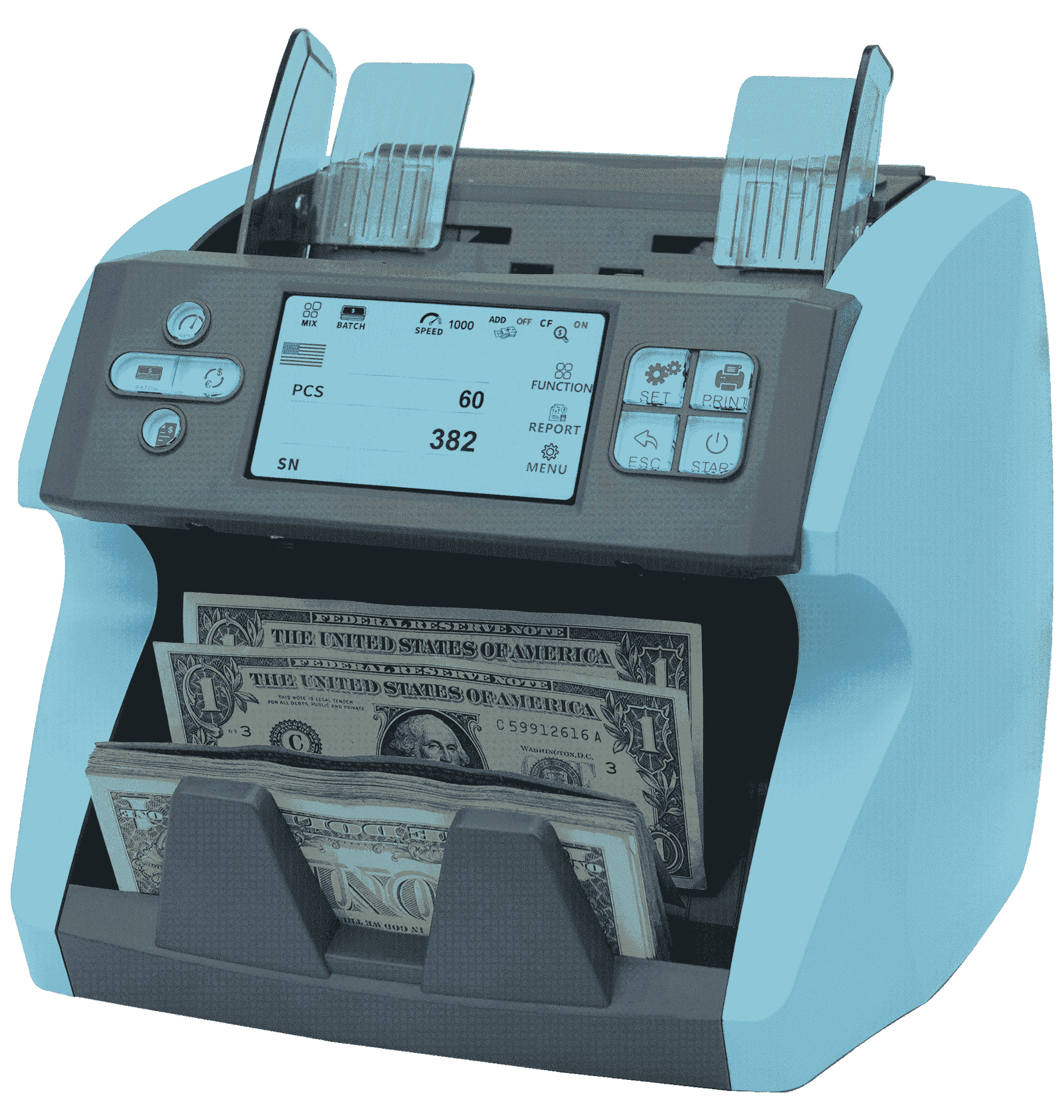

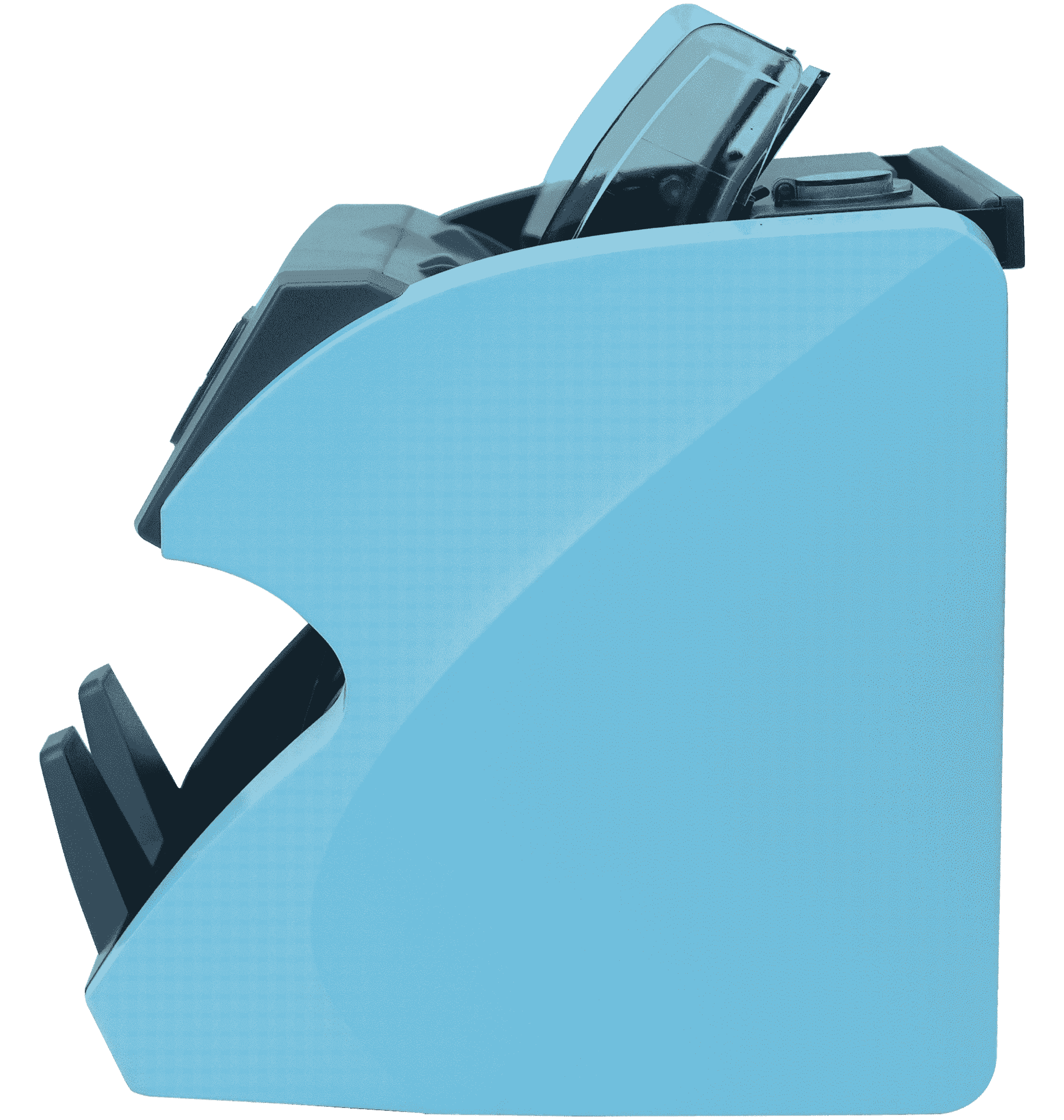

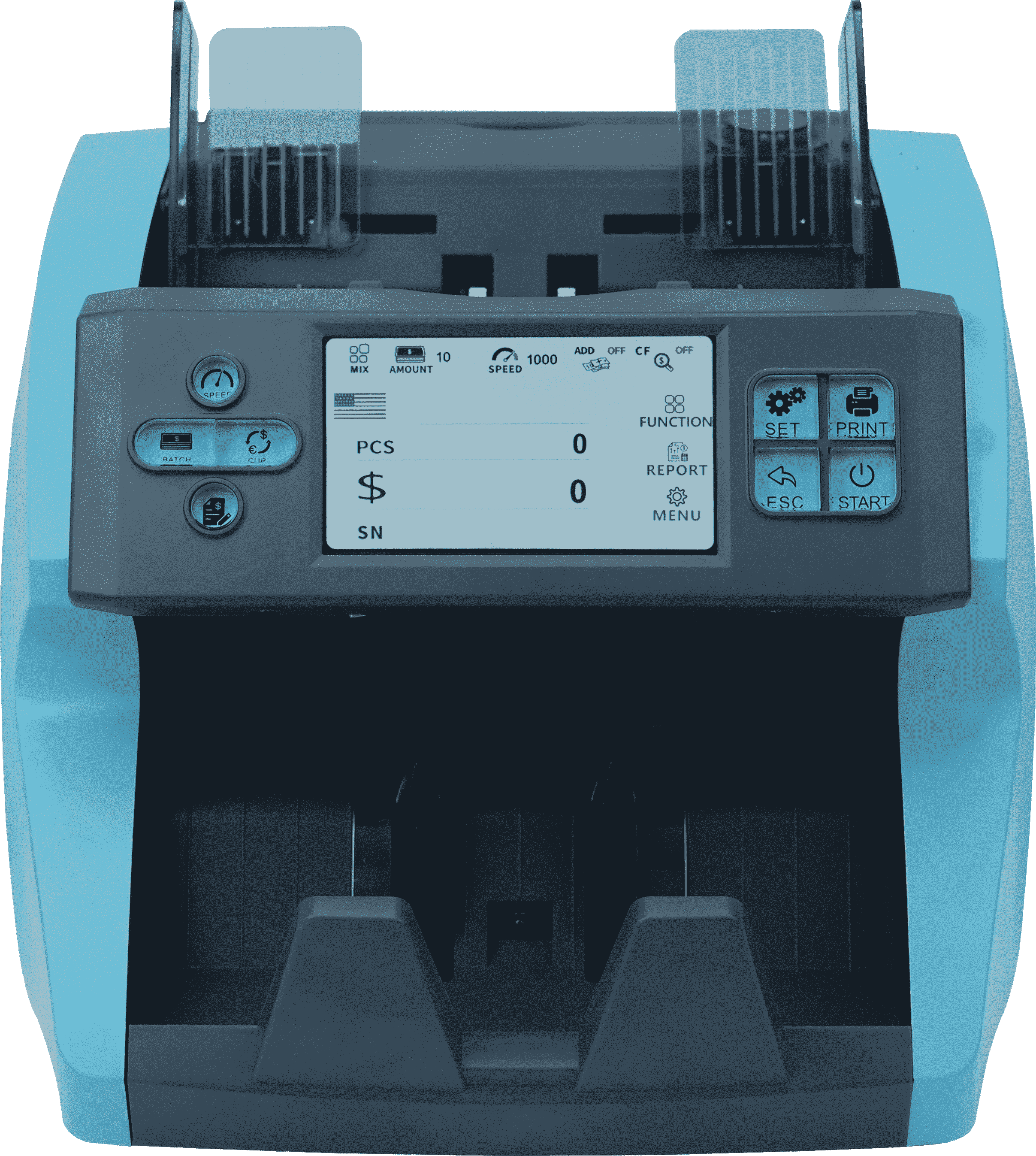

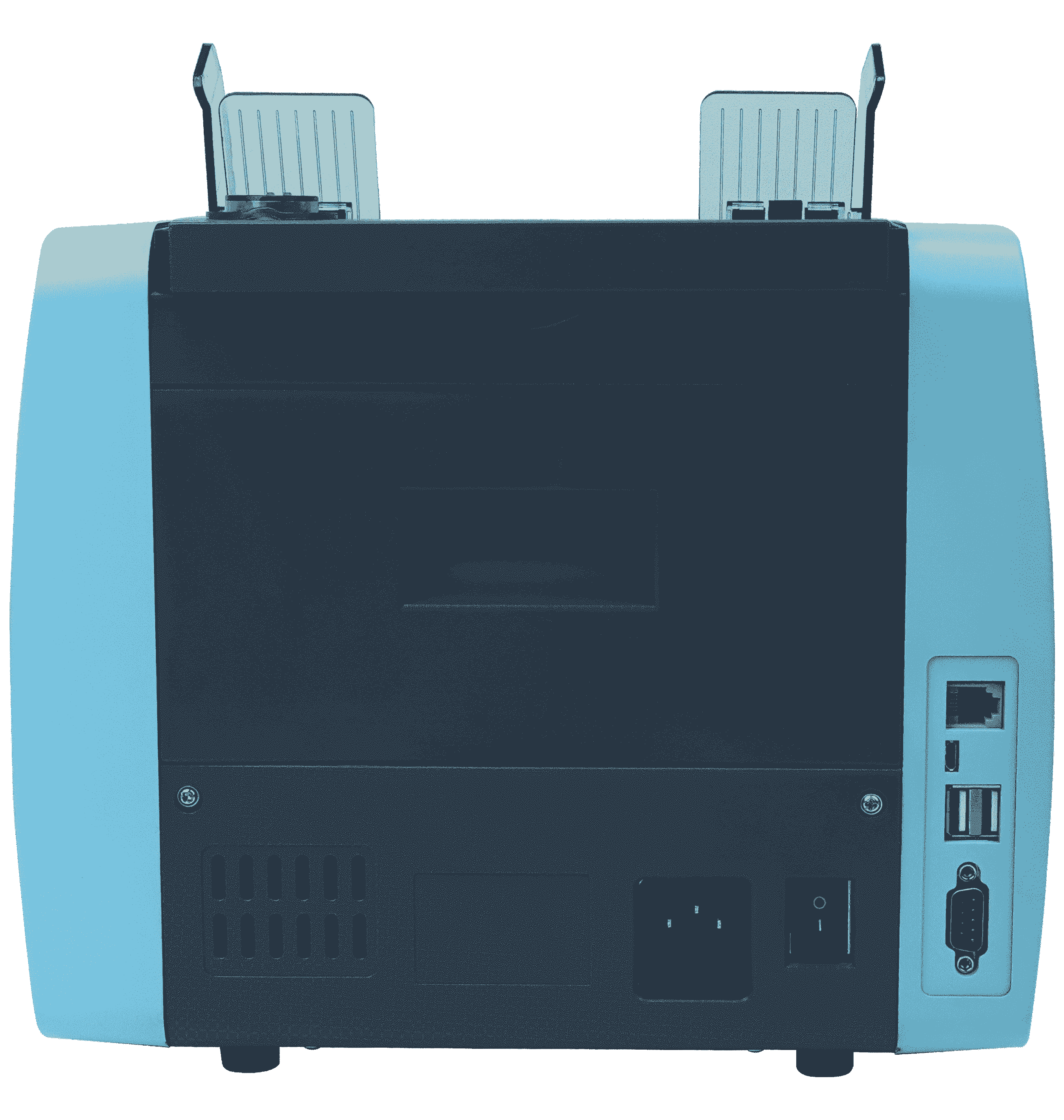

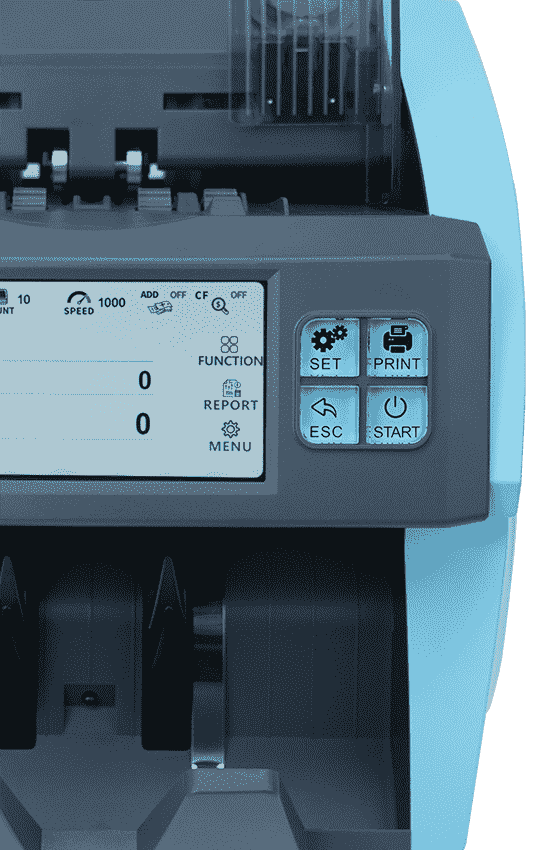

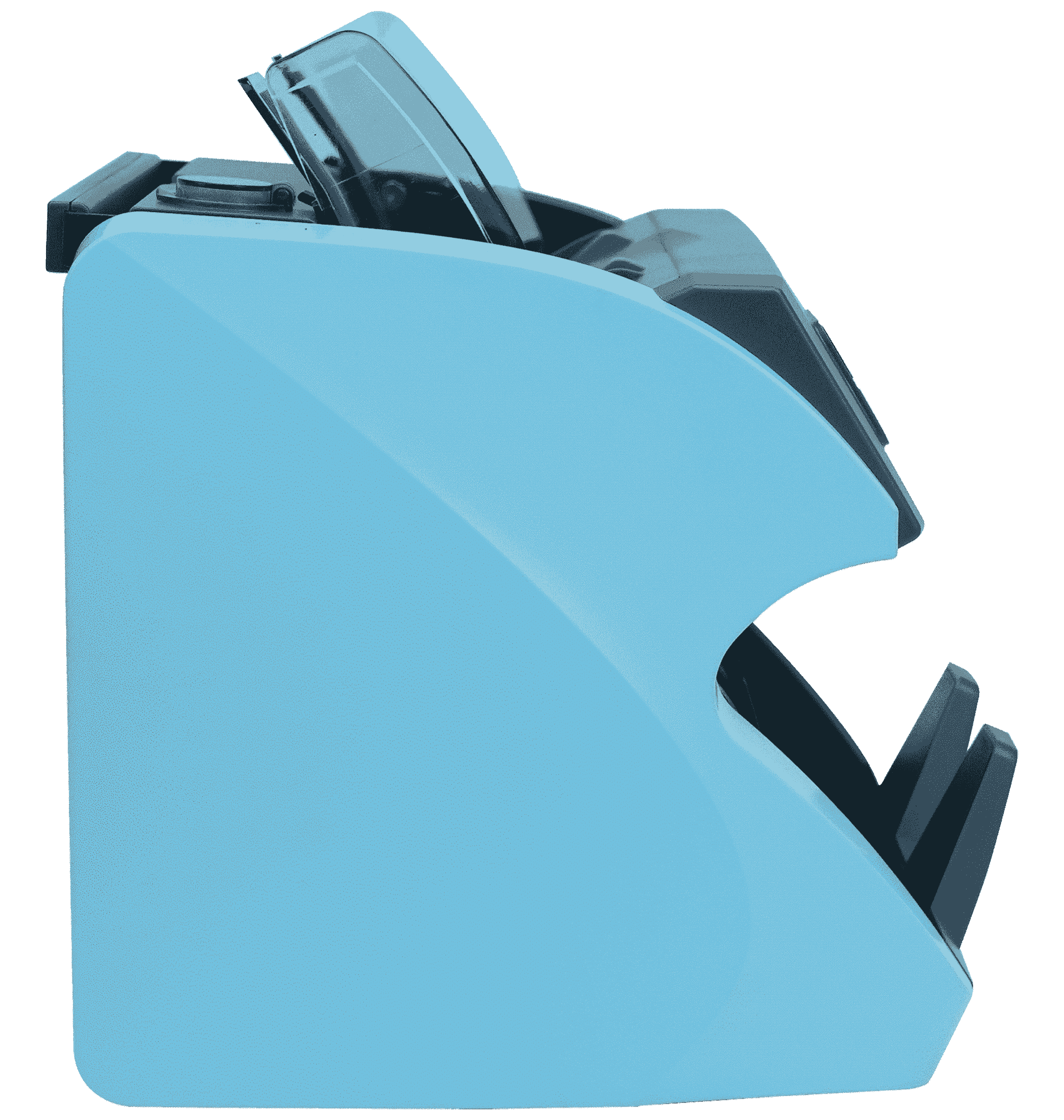

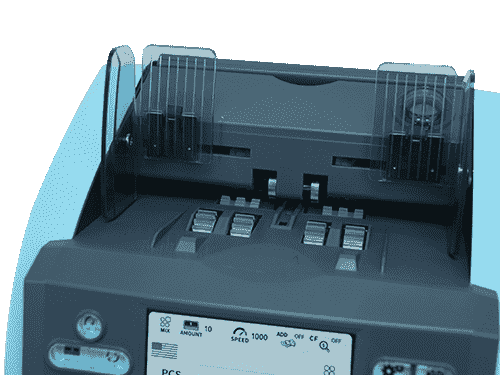

MULTI-ANGLE PRESENTATION
PRODUCT DETAILS DISPLAY
| Dimensions | 240(H)*260(W)*230(D)mm |
| Counting Speed | 800-1000 notes/min (Mpc/sDc/MoDE) 1200 notes/min(CNT MODE) |
| Feeding System | Roller Friction System |
| Stacker Capacity | 200 notes |
| Power Supply | AC 100-240V+109%5 0/60Hz |
| Power Consumption |
80W Maximum 0.5A(100~240 VAC) Idle less than 0.2A(100~240VAC) |
| Size of Countable notes |
Minimum110*60mm Maximum185*90mm |
| Thickness | 0.08-0.12mm |
| Hopper Capacity | Approx.500 notes |
| Add Mode | Allows cumulative counts |
| Interfac |
PC Terminallnterface(Android) Printerlnterface(RS-232C) USB2.0/3.0lnterface LAN port (External displayconnection) |
TECHNICAL SPECIFICATION
